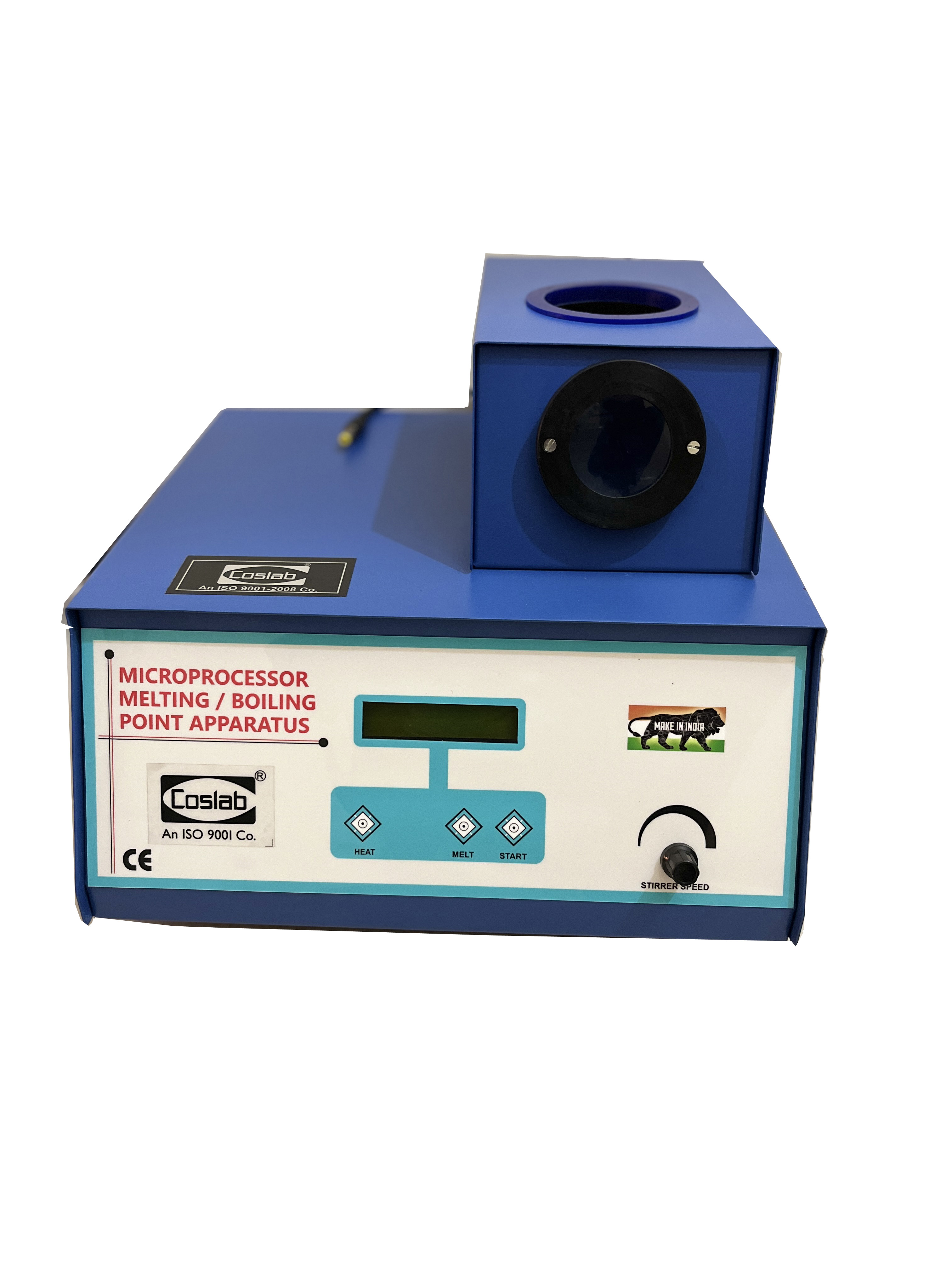

Digital Melting Point Apparatus - CAI-115/13042
with in-built Silicon Oil Bath and Stirrer. Adjustable heating rate and Stirrer speed. Range upto 275°C with readability of 1°C.
MODEL: CAI-115
TECHNICAL SPECIFICATIONS: -
| Temperature | 0 to 300 Degree C |
| Resolution | 0.1 Degree C |
| Capillary Glass Tubes | 95 mm long, 0.8 – 1.1 mm internal diameter |
| Boiling Point Glass Tubes | 95 mm long glass tube |
| Sample Amount |
Fine powder properly dried at a temperature considerably below its melting point |
| Oil Bath | Silicon oil-bath beaker 200 ml capacity with Teflon cover fitted with oil immersion heater. It has three holes for holding the capillaries, boiling point tube and Temperature Probe |
| Functions | Heat Gain, Melt, Start |
| Heat Gain | Low, Medium, High |
| Stirrer Speed | Controllable with front knob |
| Light Intensity | Controllable |
| Display | 16x2 LCD |
| Power | 220 Volt +-10%, 50 Hz |
| Dimensions | 315 x 290 x 290 mm (L x B x H) (Approx.) |
| Weight | 15 Kg Approx |
| Accessory |
|
